- Cost
- $221.10
- Variant
- Standard Mount, Black Aluminum

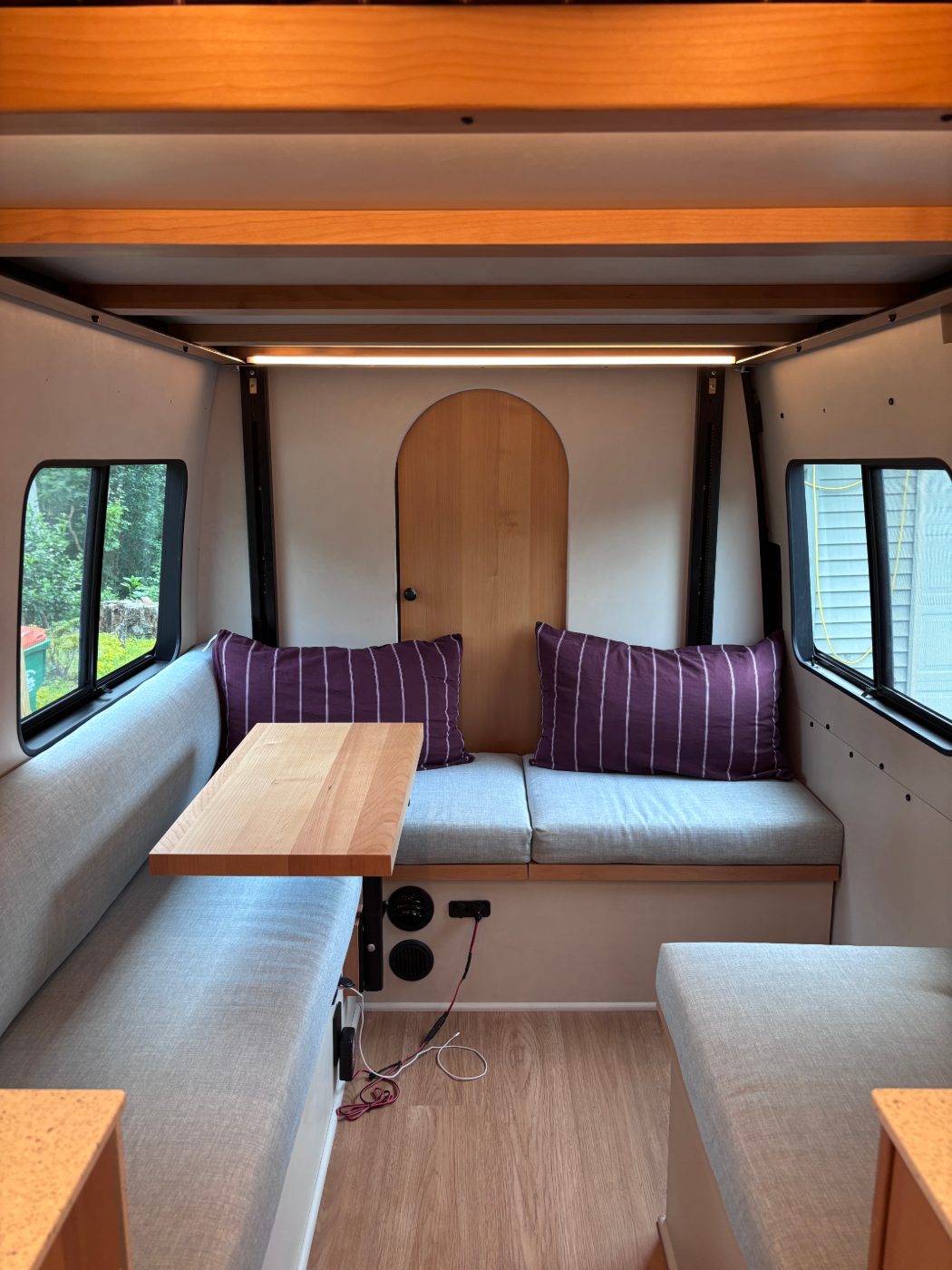

Living Room
2The living room is the front of the box — a dinette and Lagun table by day. Under the bench live the electrical system, fresh-water tank, and heater/AC; the pocket door closes the room off from the bedroom, while nooks and the TV nook use the leftover volume.
What lives here
-

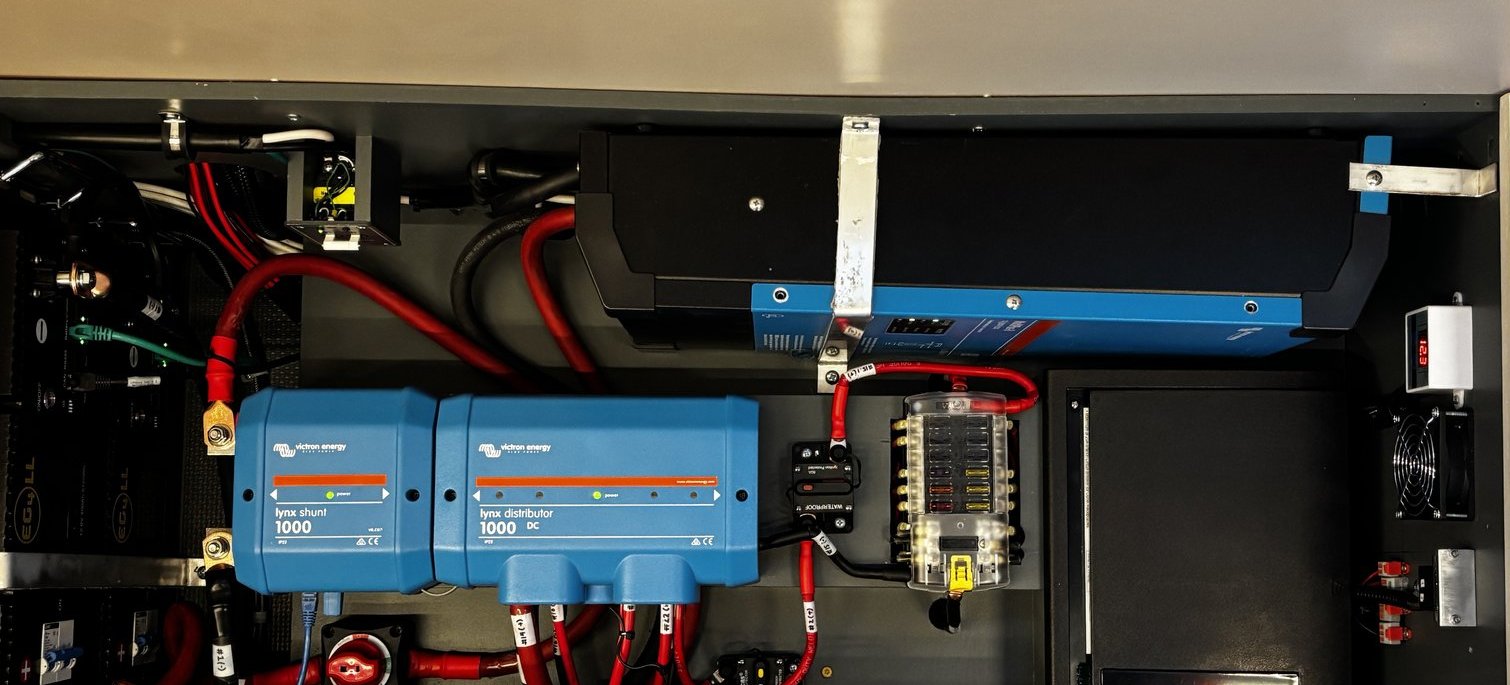

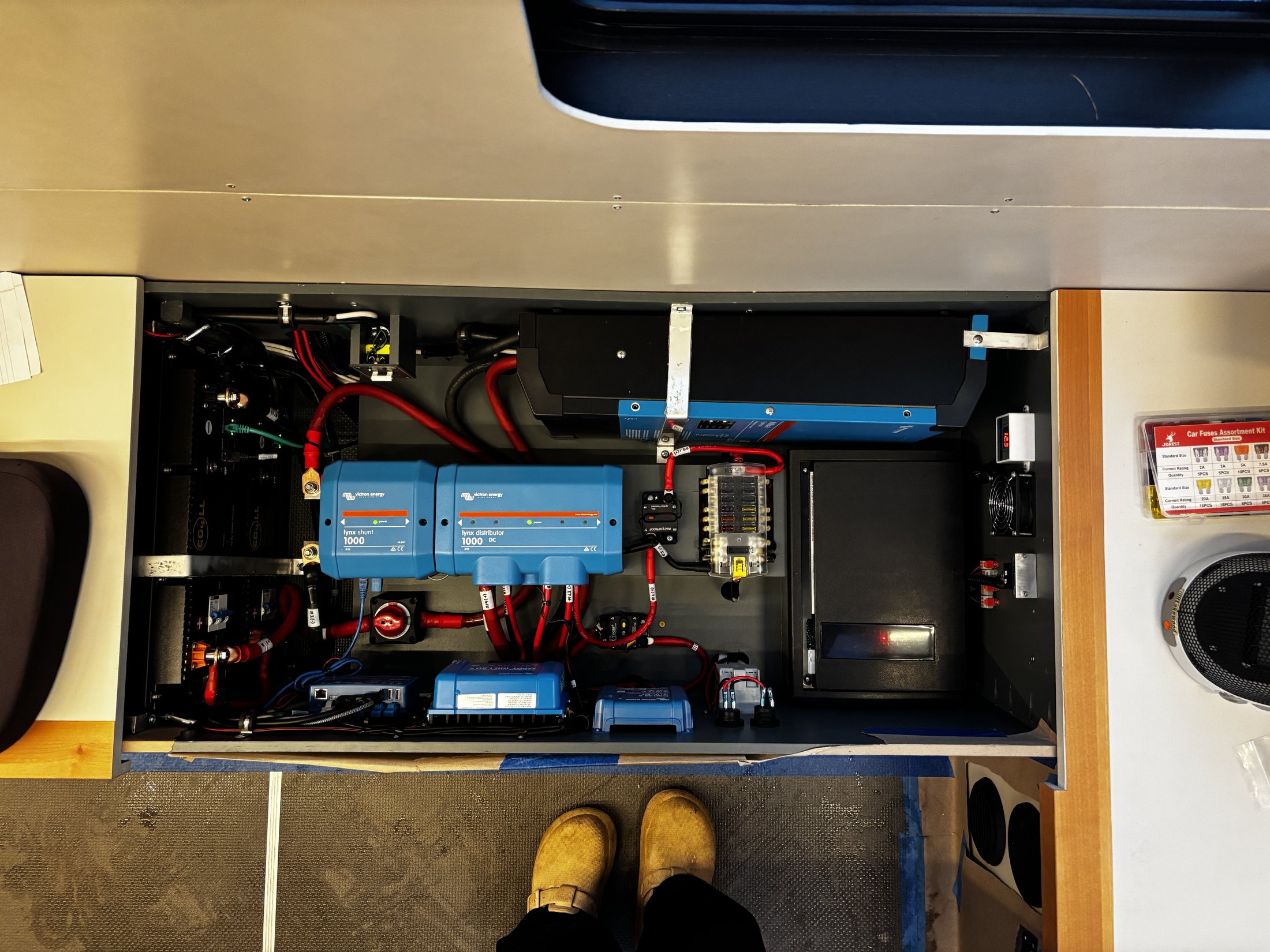

Electrical Bench
Battery, charge and heater bays under the bench seat.
-
Fresh Water Tank
The fresh-water tank and pump system beneath the living-room bench.
-
Heating & Cooling
The heater and air-conditioning hardware built into the living-room bench.
In progress -
Pocket Door
The sliding door between the living room and the bedroom.
-
TV Nook
The nook that holds the living room’s Sylvox TV.
-
Storage Nooks
Small built-in storage spaces that make use of leftover volume.
In progress -
Dinette
The living-room seating and Lagun table setup.
Parts
- Cost
- $90.81
- Capacity
- 500 lb

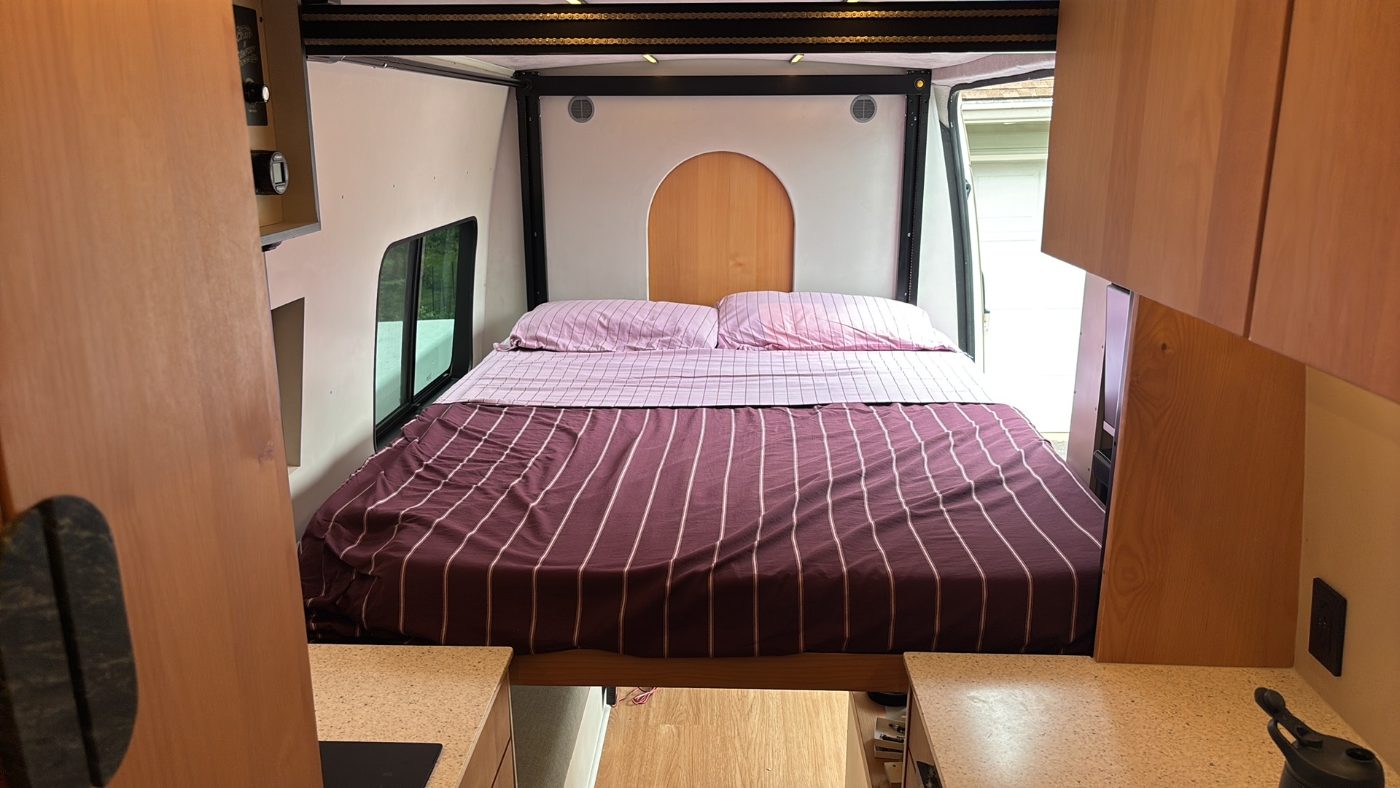

Bedroom
1HappiJac Bed Lift
Ananda Living
- Cost
- $2,464.74
- Vendor
- Ananda Living (via Edden)
- Part — Jac
- 2021121855
- Part — Bed slats
- 271952
- Part — Switch
- 2021119994
- Part — Bed cables
- 149676

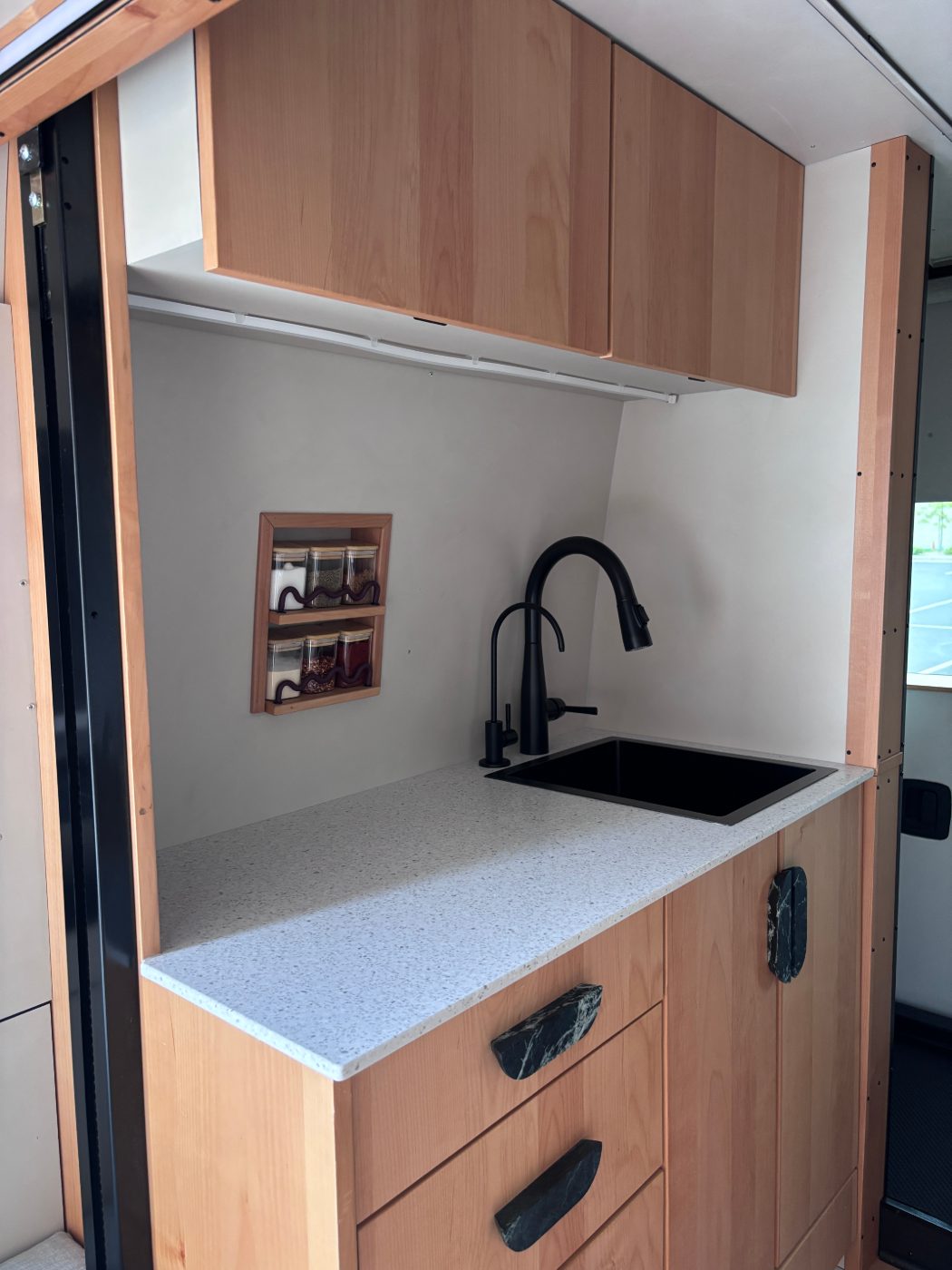

Kitchen
9Appliances
NRX 115S Refrigerator
Dometic · Stainless Steel
- Brand
- Dometic
- Model
- NRX 115S
- Dimensions
- 29.33″ H × 20.67″ W × 22.36″ D
- Weight
- 59.54 lbs
- Capacity
- 113 L (4.0 cu ft)
12″ Induction Cooktop
Empava · Vertical · Dual Burner
- Brand
- Empava
- Type
- Induction · 2 burners
- Dimensions
- 13.4″ L × 20.5″ D × 2.12″ H
- Cutout
- 12.4″ × 20″
- Power
- 120 V · 20 A breaker
- Weight
- TBD
Black Undermount Bar Sink
BoomHoze · 16-Gauge SUS304
- Brand
- BoomHoze
- Dimensions
- 15″ × 17″ × 9″
- Gauge
- 16-gauge SUS304 stainless
- Finish
- Black nano
- Drain
- 3.5″
- Weight
- TBD
Essa Pull-Down Kitchen Faucet
Delta · 9113-BL-DST · Matte Black
- Brand
- Delta
- Model
- 9113-BL-DST · Essa
- Finish
- Matte Black
- Height
- 15-3/4″
- Spout reach
- 9-3/8″
- Spout height
- 8-3/4″
- Flow
- 1.8 GPM @ 60 PSI
- Weight
- TBD
RO Drinking Water Faucet
KES · Z504CLFF18-BK · Matte Black
- Brand
- KES
- Model
- Z504CLFF18-BK
- Finish
- Matte Black · 304 stainless
- Stem
- 4.2″ threaded (fits counters up to 2.9″)
- Base
- 2.1″ (fits 0.4–1.9″ hole)
- Cert
- NSF · Lead-free
10UA Under-Sink Water Filter
Waterdrop · NSF/ANSI 42
- Brand
- Waterdrop
- Model
- 10UA
- Filter life
- 1 year
- Cert
- NSF/ANSI 42
- Dimensions
- TBD
- Weight
- TBD
Tronic 3000 T Mini-Tank Water Heater
Bosch · ES4 · 4 Gallon
- Brand
- Bosch
- Model
- Tronic 3000 T (ES4)
- Capacity
- 4 gallons
- Dimensions
- 13.75″ W × 13.75″ H × 13.5″ D
- Weight
- TBD
Countertops
Passenger Side Countertop
Corian Silver Birch · Sink + Faucet
- Material
- Corian · Silver Birch
- Overall
- 44⅞″ × 22¼″
- Wall edge
- 43⅜″ (13/16)
- Sink cutout
- 13¾″ × 15¾″
- Faucet hole
- 1⅜″ DIA (3/8)
- Accessory hole
- ½″ DIA
- Corner radius
- ¼″
Driver Side Countertop
Corian Silver Birch · Cooktop + 3 Backsplashes
- Material
- Corian · Silver Birch
- Overall
- 26¾″ × 22⅜″
- Wall edge
- 25⅛″ (1/8)
- Cooktop cutout
- 12⅜″ × 19⅞″
- Back backsplash
- 24⅝″ × 5½″ · installed last
- L / R backsplash
- 5½″ × 21⅝″ · 85° to wall
- Corner radius
- ¼″

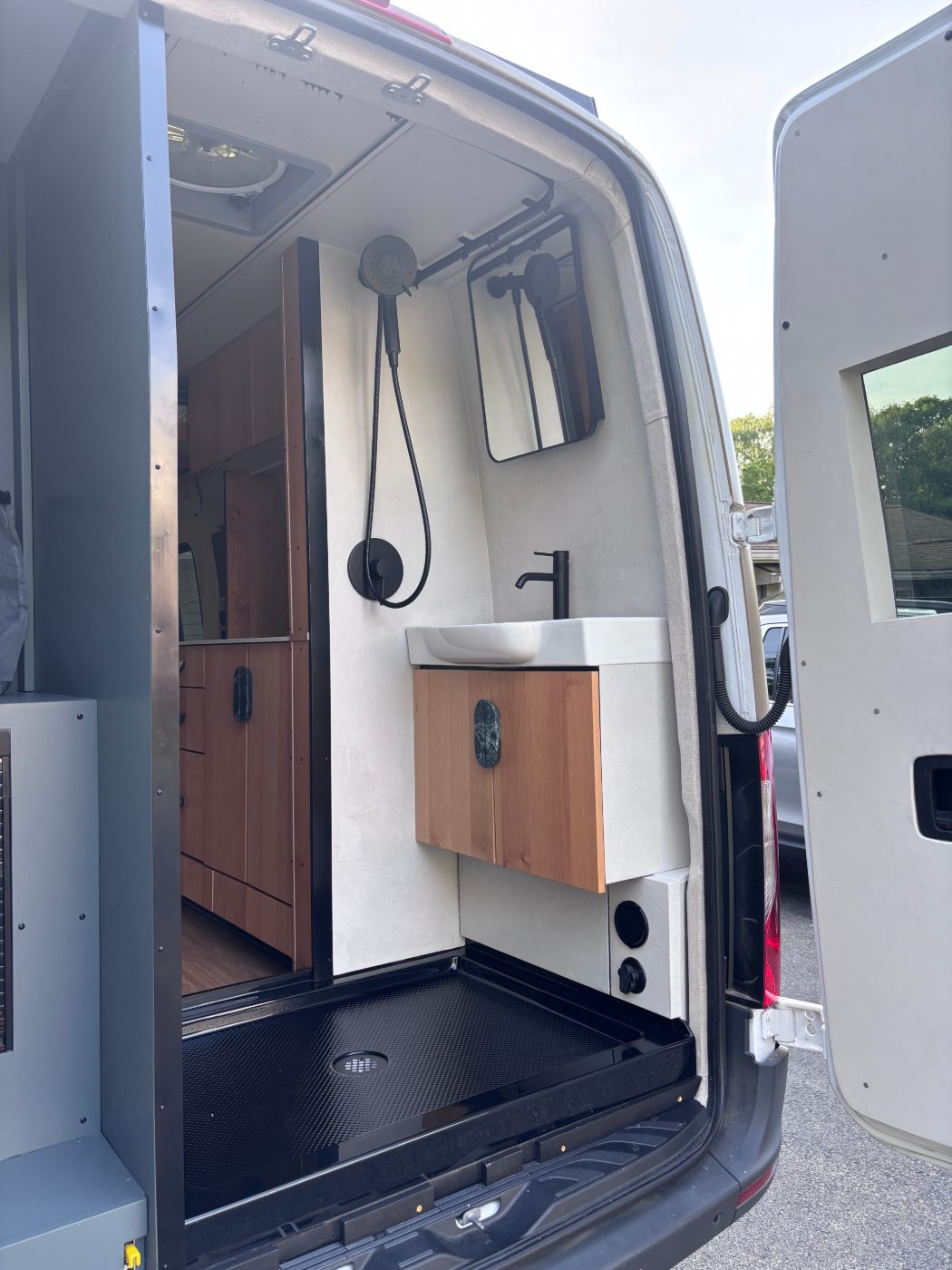

Bathroom
10Nebia Yuba Hand Shower
Brondell · NE80-HSHNBB-MB
- Cost
- $106.08
- SKU
- NE80-HSHNBB-MB
- Brand
- Brondell
Shower Mixer
Sumerain · SMER1035
- Cost
- $121.09
- Model
- SMER1035
- Vendor
- Wayfair
SlimLine Shower Base
DreamLine · DLT-1132420-88
- Cost
- $440.49
- Model
- DLT-1132420-88
- Size
- 32" D × 42" W × 2 3/4" H
- Drain
- Center, single threshold
- Material
- ABS
- Finish
- Black
- Weight
- 37.5 lbs
No-Caulk Shower Drain
Westbrass · D206P-62
- Cost
- $19.99
- Model
- D206P-62
- Fits
- 2" PVC, compression
- Cover
- 4-1/4" round grid
- Material
- Plastic
- Finish
- Matte black
Pop-Up Sink Drain, No Overflow
KES · S2018D-BK
- Cost
- $25.00
- Model
- S2018D-BK
- Type
- Pop-up, no overflow
- Extras
- Detachable hair catcher
- Material
- Brass & stainless steel
- Finish
- Matte black
Scalloped Waffle Weave Shower Curtain
Monday Moose · Nereida
- Cost
- $30.00
- Model
- Nereida
- Size
- 72" W × 72" L
- Colour
- Dark green / light sage
- Material
- Polyester
- Top
- Rustproof metal grommets, hooks included
- Care
- Machine washable
Sink Faucet, Single Handle
Sumerain · S1421-MB
- Cost
- $48.13
- Model
- S1421-MB
- Mount
- Deck mount, single hole
- Handle
- Lever
- Material
- Brass, lead-free
- Finish
- Matte black
- Included
- Supply lines
28" Vanity with Ceramic Sink
Trygoal · Wall-mounted
- Cost
- $285.21
- Size
- 14.8" D × 27.2" W × 22.8" H
- Mount
- Wall-mounted, with legs
- Top
- Ceramic
- Cabinet
- Wood, stained
- Colour
- Brown
- Storage
- Soft-close door + two open shelves
Bendable Ceiling Curtain Track
Jetec · GR-Jetec-202552
- Cost
- $16.99
- Model
- GR-Jetec-202552
- Length
- 2 m / 6.6 ft
- Mount
- Ceiling, bendable to curves
- Load
- 10 kg max
- Material
- Stainless steel & plastic
- Finish
- Black
- Included
- 6 brackets · 20 clips · 16 rollers · 2 end caps
Rectangle Vanity Mirror, 16 × 20"
URnicehome · Black frame
- Cost
- $39.99
- Size
- 20" L × 16" W
- Mount
- Wall, horizontal or vertical
- Glass
- Tempered
- Frame
- Aluminium, anti-rust
- Finish
- Matte black
- Weight
- 2.22 kg
Garage
2Trailer Hitch
E-Trailer · Curt 75549
- Cost
- $306.29
- Part #
- 75549
- Fits
- 2024 Mercedes Sprinter 3500
Sprinter Side Steps
Flatline Van Co
- Cost
- $1,695.00
Roof
9Sprinter Roof Tracks
Van Tech · 170 WB
- Cost
- $411.74
- Fits
- 170 WB Sprinter
Driftr Roof Rack
Backwoods Adventure · Mercedes Sprinter
- Cost
- $2,125.00
- Brand
- Backwoods Adventure
- Fits
- 2014+ Sprinter
MaxxFan Deluxe — Smoke 7500K
Van Life Outfitters · MaxxAir
- Cost
- $309.00
- Model
- Deluxe Smoke 7500K
- Brand
- MaxxAir
Vent Fan Roof Adapter
DIY Van · 14×14 Sprinter NCV3 / VS30
- Cost
- $79.55
- Fits
- 14×14 opening, NCV3/VS30 (2007+)
Mini Voyager Starlink Mount
Star Mount Systems
- Cost
- $410.94
- Includes
- Mount + quick release
Starlink Mini Roam
Starlink · Roam plan
- Cost
- $669.30
- Activation
- $50 (Roam plan)
Lewmar Size 50 Boat Hatch
West Marine · Low profile, 14-13/16″ × 19″
- Cost
- $982.62
- Series
- Size 50, low-profile
- Includes
- Roller shade
Fiamma F45 S 400 Awning
Campervan HQ · 13′1″
- Cost
- $1,630.40
- Model
- F45 S 400 RV
- Length
- 13′1″
Fiberon Composite Decking — Coastal Grey
Home Depot · 8 ft
- Cost
- $152.54
- Color
- Coastal Grey
- Quantity
- 2 end pieces, 8 middle pieces
Cab
2Headliner Shelf Kit
Vancillary · Sprinter
- Cost
- $129.95
- Fits
- Sprinter headliner
AMA Side Windows
Panther RV Products · MS06-L1-HSS
- Cost
- $1,843.12
- SKU
- MS06-L1-HSS
- Brand
- AMA
Electric
11

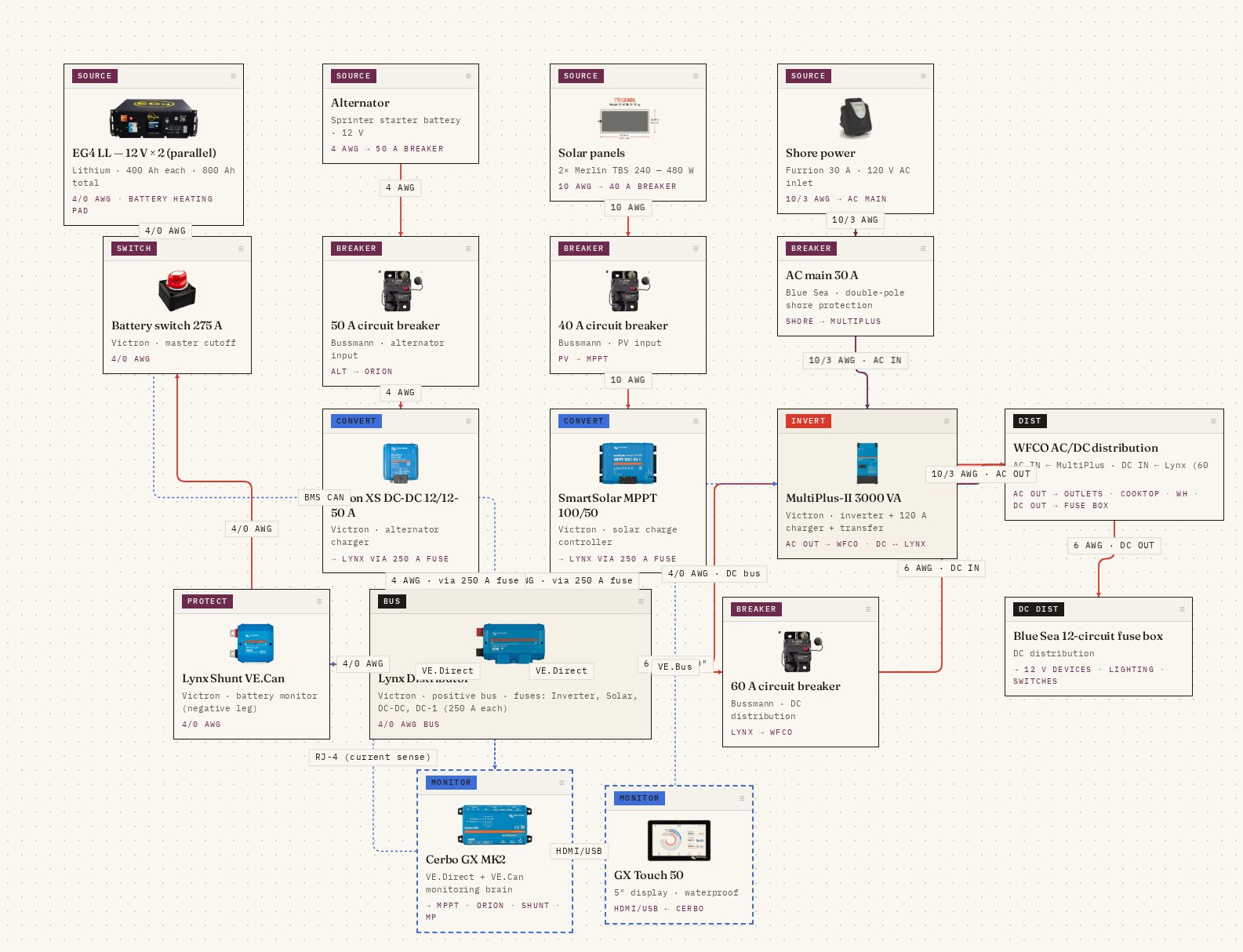

View full single-line diagram ↗
Project Specs
- System
- Victron 12 V house · EG4 LFP batteries
- Battery bank
- 800 Ah @ 12 V (≈ 9.6 kWh) — 2 × EG4 LL V2 400 Ah
- Inverter
- Victron MultiPlus-II 3000 VA
- Solar charger
- Victron SmartSolar MPPT 100/50 (50 A)
- DC-DC charger
- Victron Orion-Tr Smart 12/12-50A
- Shore power
- Furrion 30 A inlet
- Monitoring
- Cerbo GX MK2 + GX Touch 50
- System integrator
- Solar Advantage · Tucson, AZ
Components
- Quantity
- 2
- Capacity
- 400 Ah @ 12 V (5.12 kWh ea)
- Chemistry
- LFP w/ display
- Unit price
- $1,440.00
- Subtotal
- $2,880.00
- Output
- 3000 VA · 12 V → 120 V AC
- Charger
- Built-in shore charger
- Cost
- $1,063.00
- Max PV
- 100 V
- Output
- 50 A @ 12/24 V
- Cost
- $194.85
- Type
- Non-isolated DC-DC charger
- Output
- 50 A @ 12 V
- Cost
- $347.00
- Function
- System monitoring & control
- Cost
- $262.20
- Size
- 5″ touch screen
- Pairs with
- Cerbo GX MK2
- Cost
- $232.58
- Function
- 1000 A shunt + main fuse holder + VE.Can monitor
- Cost
- $375.35
- Function
- Modular DC bus bar — 4 fuse positions
- Fuses
- 5 × Victron 300 A Mega-Fuse
- Cost
- $212.80 (distributor) + $80.75 (fuses)
- Rating
- 275 A continuous
- Cost
- $36.80
- Quantity
- 3
- Rating
- 40 A (or required amperage)
- Unit price
- $38.48
- Subtotal
- $115.44
- Rating
- 30 A
- Cost
- $54.05
Plumbing
5- Cost
- $238.91
- Capacity
- 30 gal
- SKU
- RVWB118
Spare-Tire Water Tank — 28 Gal
Northwest Conversions · via Campervan HQ
- Cost
- $329.00
- Capacity
- 28 gal
- Mount
- Spare-tire location
- Cost
- $70.27
- Series
- 42
- Cost
- $32.39
- Cost
- $57.40
- Brand
- Aoditeck
Finishes
11Alder Veneer
Oakwood Veneers · Standard Planked Premium
- Product
- Alder Planked Veneer
- Size
- 4′ × 8′
- Grade
- Standard Planked Premium
- Backing
- 10mil Paperbacked
- Quantity
- 5 sheets
Supplies used
- DAP Weldwood Contact Cement · 1 Gallon ↗
- 4″ foam rollers ↗ (for applying the rubber cement)
- Osmo Polyx-Oil 3031 Clear Matte · 0.75 L ↗
- 3M Synthetic Steel Wool Pads ↗
Burrow Roman Clay
Portola Paints
Order
- 10 kg Roman Clay · Burrow ↗
- 1 gallon Roman Clay Top Coat ↗
- 1 gallon Benjamin Moore #1465 Nimbus ↗ (color match to Burrow)
Supplies used
- Plastic palette knives ↗ — 6″, 4″, 2″
- Kilz Original primer ↗ (applied underneath)
Concretta Microcement
Meoded · MC765
- Color
- MC765
- Brand
- Meoded Paint & Plaster
Order
- 1 gallon Quartz Primer ↗
- 2 gallons Concretta ↗
- 2 batches of pigment (for the 2 gallons of Concretta)
- 1 quart PlasterGuard ↗
Supplies used
True Black Paint
BEHR · Black · Eggshell
- Color
- Black
- Code
- BLACK
- Brand
- BEHR
- Finish
- Eggshell
- Quantity
- 2 gallons
- Hex
- #3F3F3E
Supplies used
Binary Star Paint
BEHR · N450-6 · Eggshell
- Color
- Binary Star
- Code
- N450-6
- Brand
- BEHR
- Finish
- Eggshell
- Quantity
- 1 gallon
- Hex
- #616767
Supplies used
B99-8 Upholstery Fabric
AGB
- Code
- B99-8
- Brand
- AGB
- Quantity
- 10 m
- Price
- ₫120,000 / meter
- Stall
- Bích Đào · Quầy 74
- Bought at
- Thương Xá Bồng Khánh, Vietnam ↗
Supplies used
- HD36 High Quality Foam ↗ — full sheet 82″ × 76″ × 4″ thick (Foam Factory)
- Polyester Fiberfill ↗ — 1″ thick × 30″ wide × 60 ft (Medium), Foam Factory
Black Marathon Tweed
Campervan HQ · MAR-1028
- Color
- Black
- SKU
- MAR-1028
- Brand
- Campervan HQ · Marathon Tweed
Supplies used
- Landau Plus closed-cell foam padding ↗ — PAD-5 (1/8″ thick × 60″ wide), bonded behind the tweed
Tundra Van Wrap
KPMF · K75531 · Satin Stealth Tundra
- Color
- Tundra
- SKU
- K75531
- Series
- K75400 · Satin Stealth
- Brand
- KPMF
- Finish
- Satin
Verde Marble Dot Handle
Lo & Co · Small · Pair
- Color
- Verde Marble
- Size
- Small
- Brand
- Lo & Co
- Quantity
- 8 pairs
Verde Marble Hubble Knob
Lo & Co · 40 mm
- Color
- Verde Marble
- Diameter
- 40 mm
- Brand
- Lo & Co
- Quantity
- 1
Silver Birch Countertop
Corian Solid Surface · DuPont
- Color
- Silver Birch
- Material
- Corian Solid Surface
- Brand
- DuPont
- Supplier
- ProSource Hudson Valley
- Point of contact
- Corrine Corbett
Carpentry
0Nothing logged yet.
Heating & Cooling
3Webasto Air Top EVO 40 Diesel Heater
Van Life Outfitters · with SmarTemp 3.0
Part of Heating & Cooling
- Cost
- $2,057.30
- Model
- Air Top EVO 40
- Controller
- SmarTemp 3.0
- Notes
- Good for high altitude
- Cost
- $6,204.50
- Model
- VES Ice Box 12V
- Includes
- Dual fan condenser, rock guard, brackets, digital thermostat
- Cost
- $54.63
- Part #
- 10-7-0010
- Use
- Connects Webasto fuel line to van diesel tank
Insulation
0Nothing logged yet.
Solar & Power
1Merlin TBS 240L Solar Panels
Solar Advantage · Trailblazer Van Life
- Cost
- $1,625.00
- Model
- TBS 240L Trailblazer Van Life
Tech
1- Cost
- $460.18
- Size
- 22″
- Power
- 12 V
Drawings
14D/S Lower Cabinetry
Kitchen · driver side
D/S Stove Cab — Drawer 1
Kitchen · driver side
D/S Stove Cab — Drawers 2 & 3
Kitchen · driver side
D/S Stove Cab — Drawer 4
Kitchen · driver side
P/S Lower Cabinetry
Kitchen · passenger side
P/S Cabinetry — Drawers 1–3
Kitchen · passenger side
D/S Countertop
Kitchen · Corian, cooktop cut-out
P/S Countertop
Kitchen · Corian, sink & faucet cut-outs
Garage Drawer Cassette
Garage
Toilet Drawer & Cassette
Bathroom
Gray Water Drain
Plumbing · shower pan & vanity to tank
Vanity Cabinet
Bathroom
Vanity Support Box
Bathroom
Phase 2
0Nothing logged yet — send me items and I will add them.
To Buy
0Nothing logged yet — send me items and I will add them.
