Electrical Bench

Battery, charge and heater bays under the bench seat.

Story

The bench brings the van’s storage, charging, conversion, distribution and monitoring hardware together in one place. Two 12 V, 400 Ah EG4 LL batteries make an 800 Ah bank, alongside the Lynx Shunt and Distributor, 3,000 VA MultiPlus-II, SmartSolar MPPT 100/50, Orion XS 12/12-50, Cerbo GX MK2 and GX Touch 50.

It accepts 480 W of solar, alternator charging through the Orion, and 30 A / 120 V shore power through the MultiPlus. From there, the WFCO and Blue Sea panels distribute AC and 12 V circuits; the electrical documentation tracks 52 loads and their routes.

Process photos

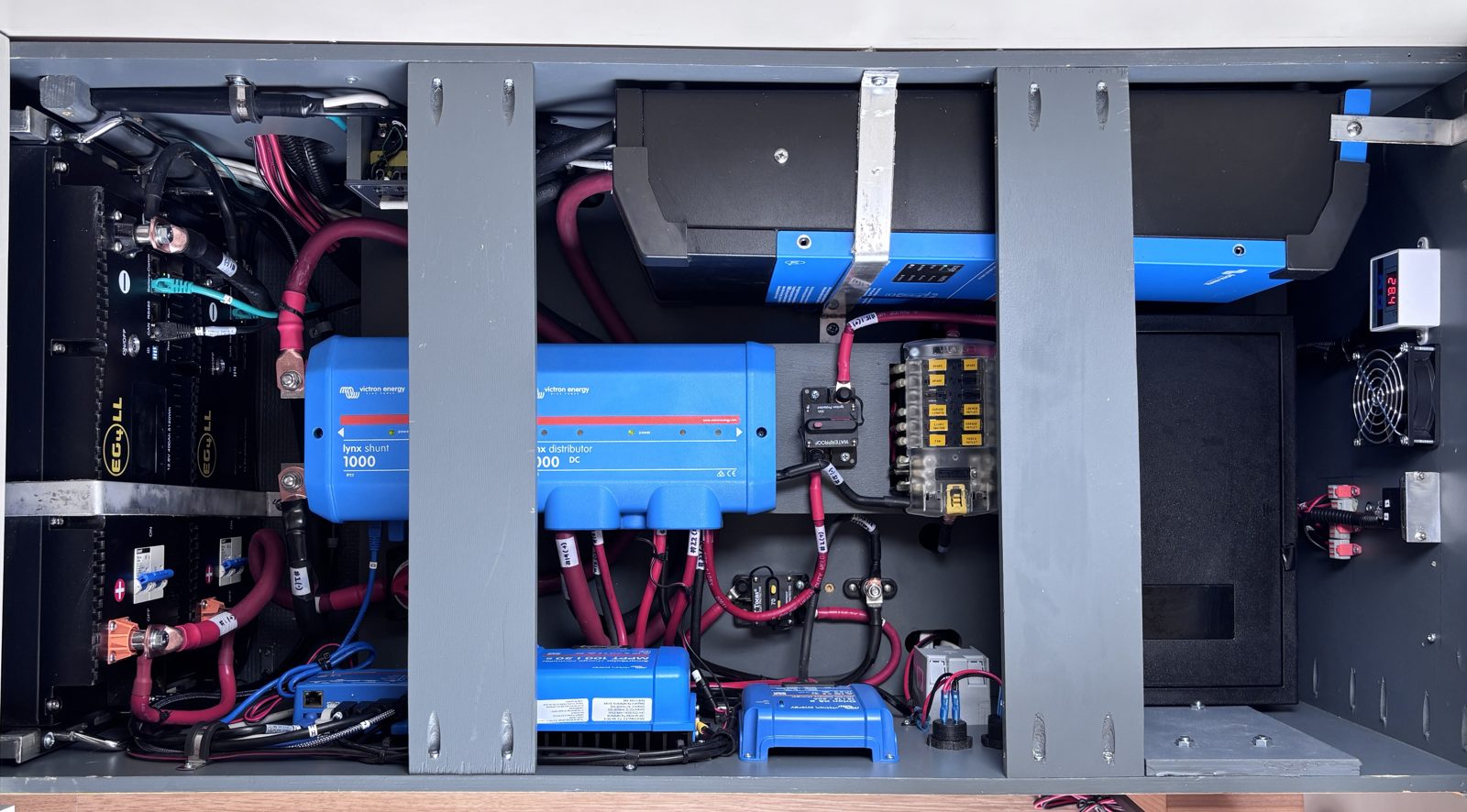

Top-down overview of the full electrical bench.

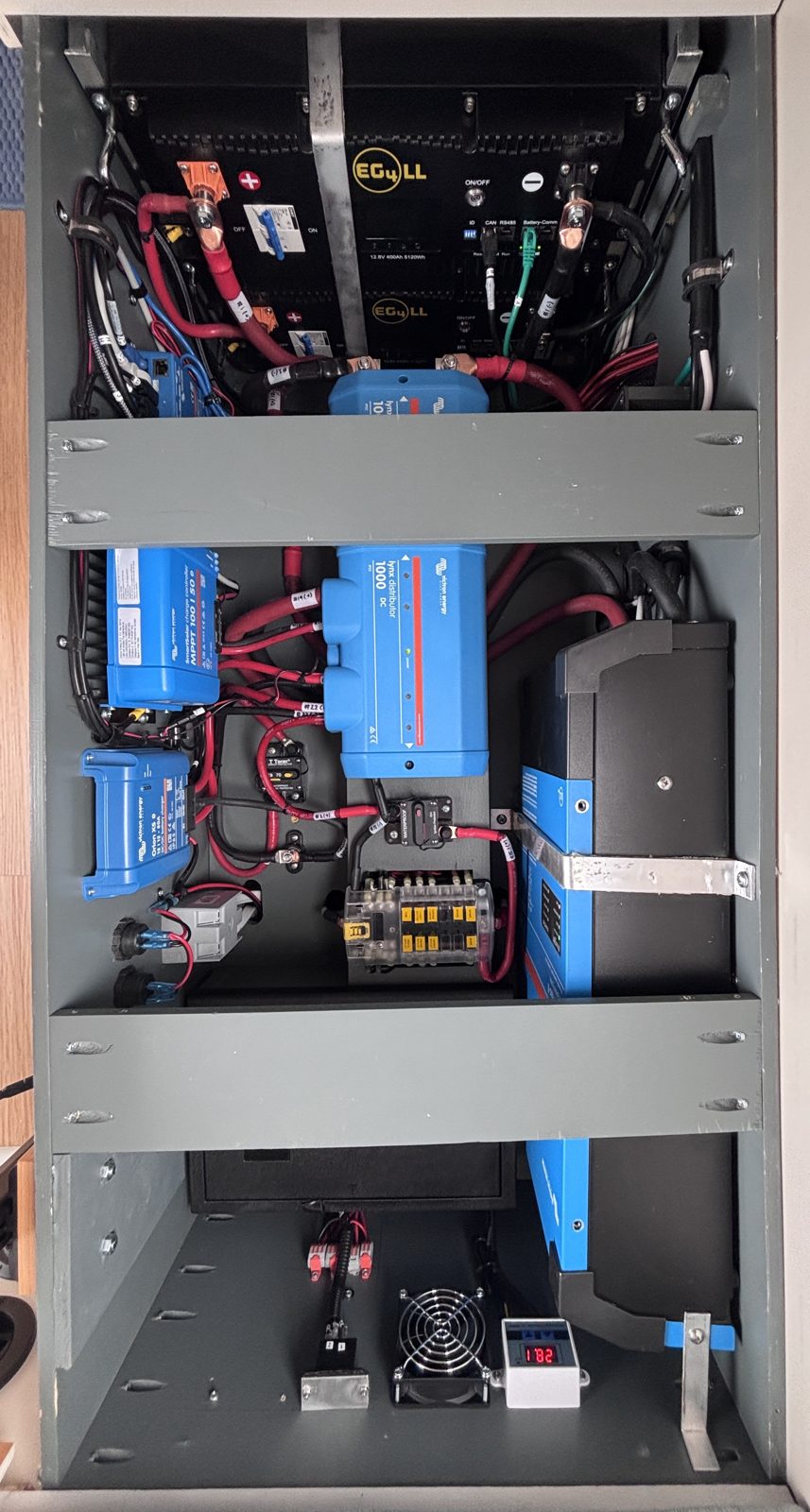

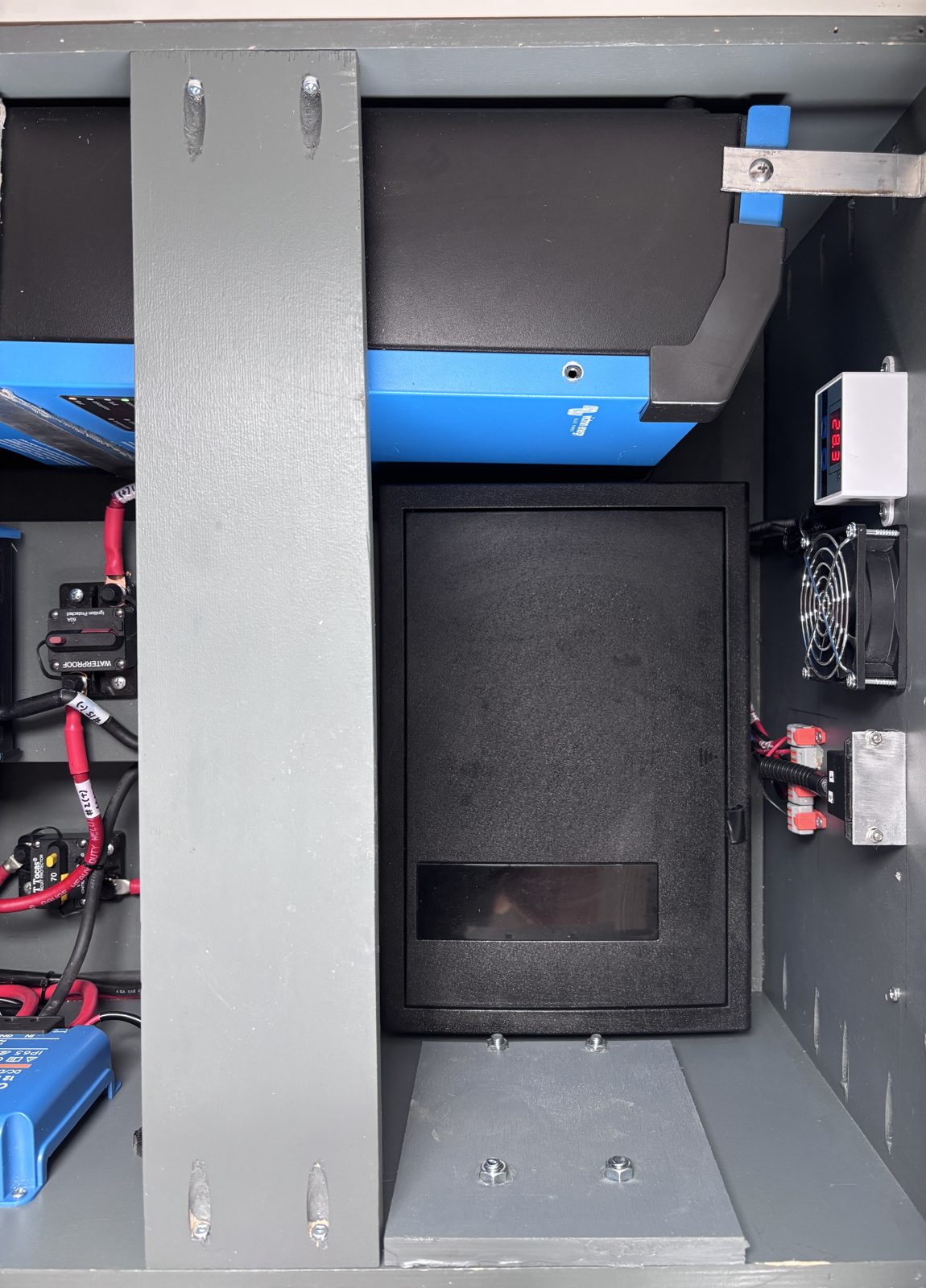

Full front elevation of the bench: battery bay, charge bay, and heater bay.

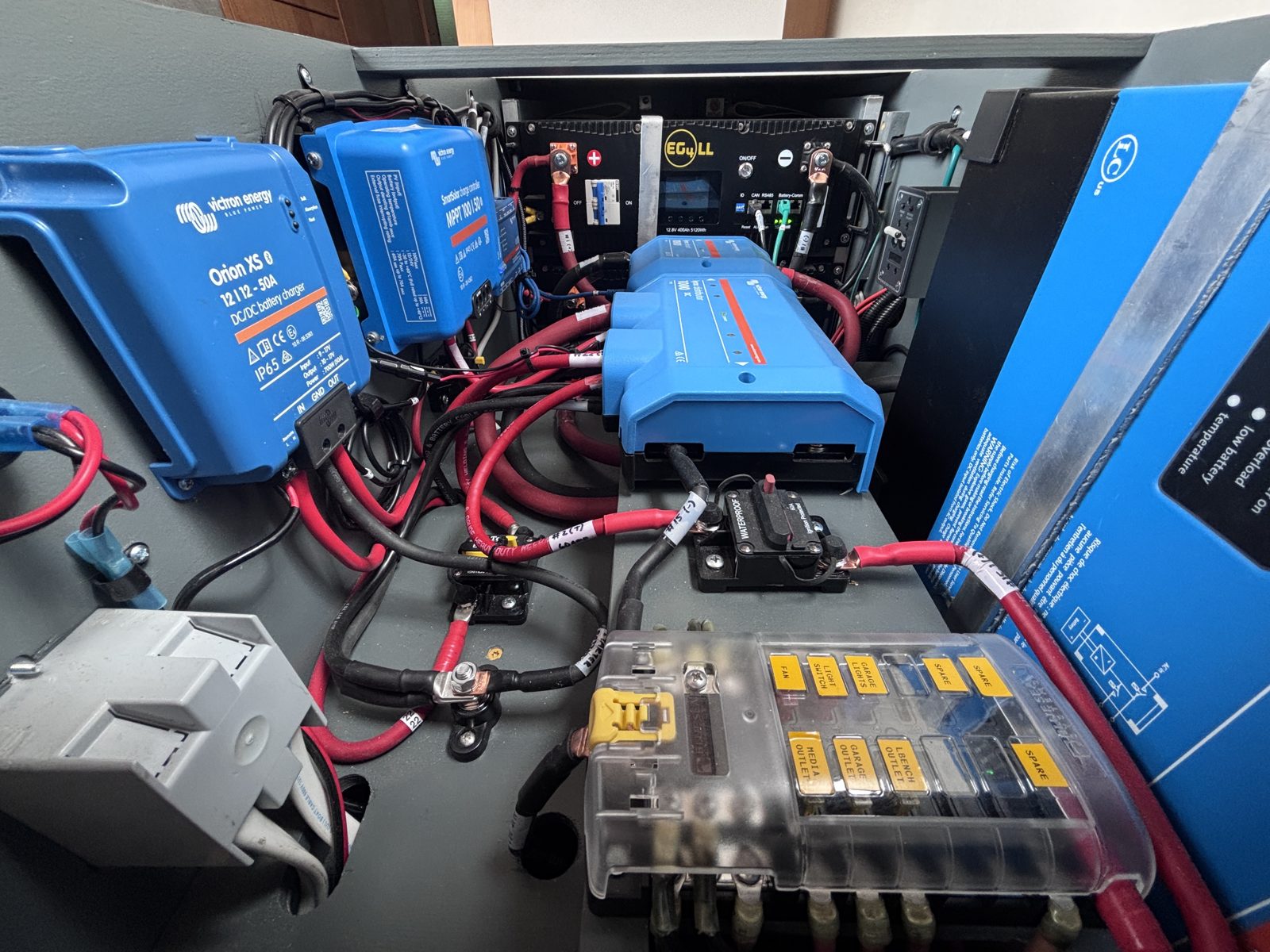

Angled view of the electrical bench from the slider door.

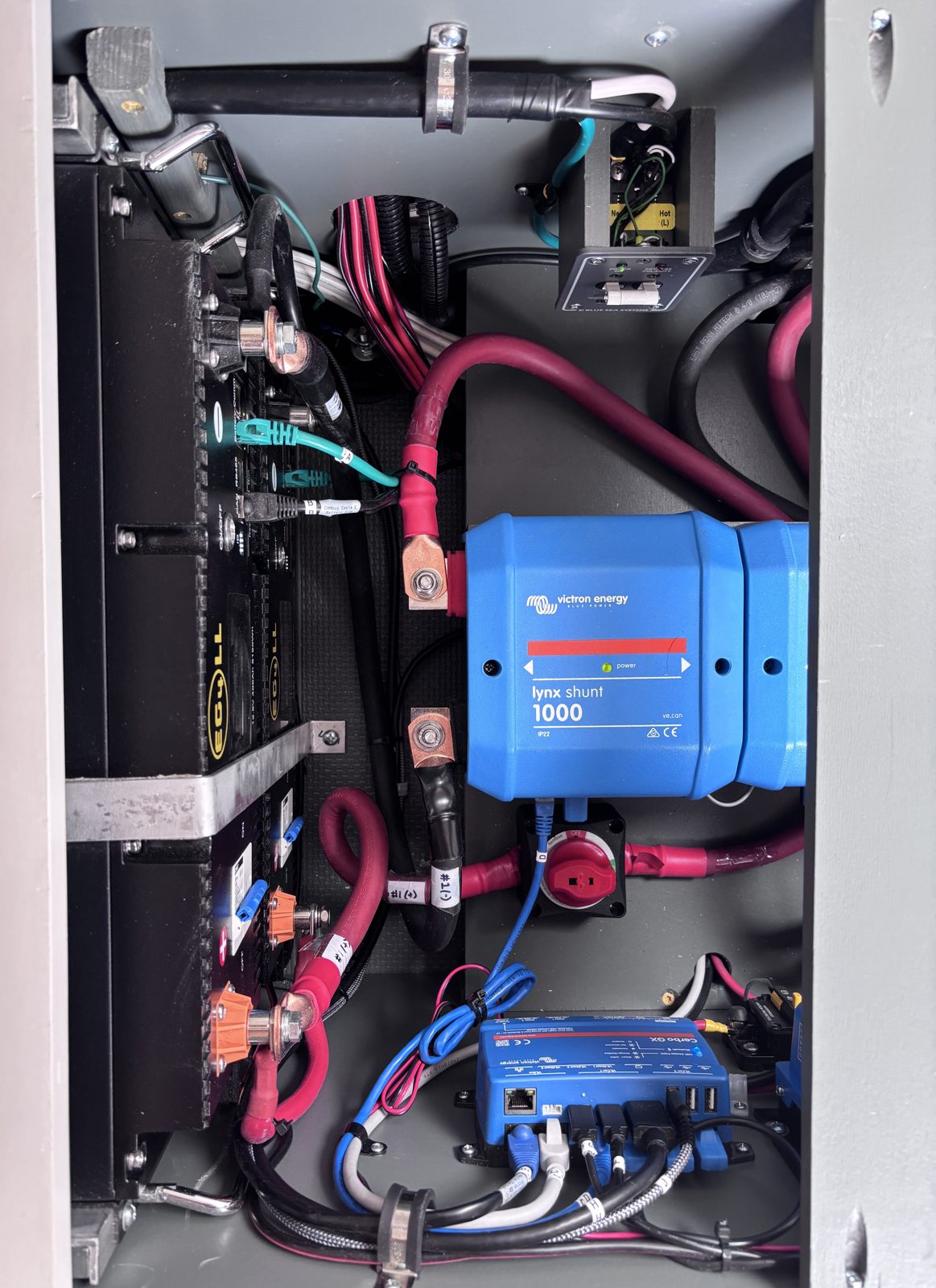

Battery bay: EG4-LL batteries, Lynx Shunt, and Cerbo GX.

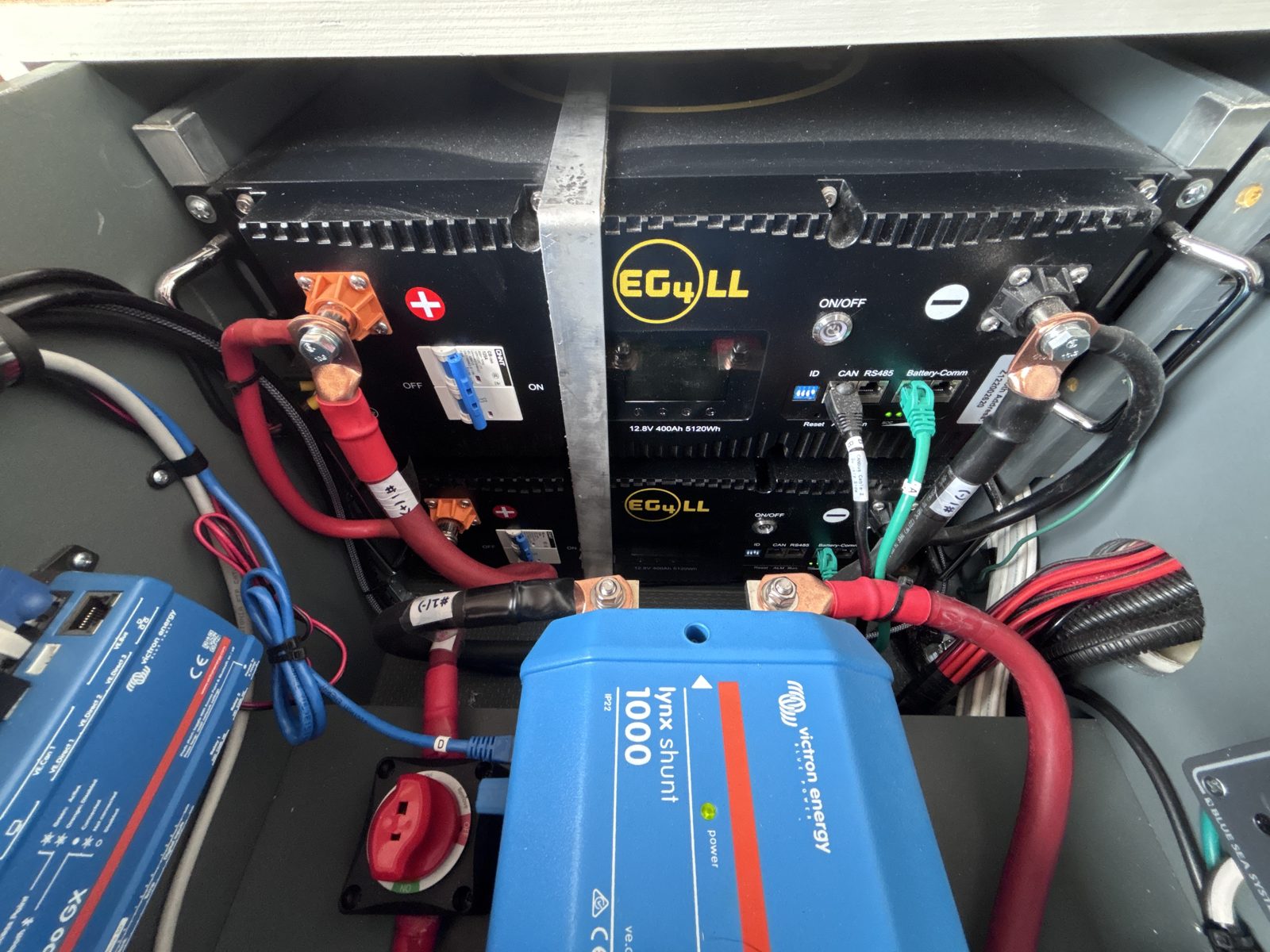

Battery terminals and Lynx Shunt wiring detail.

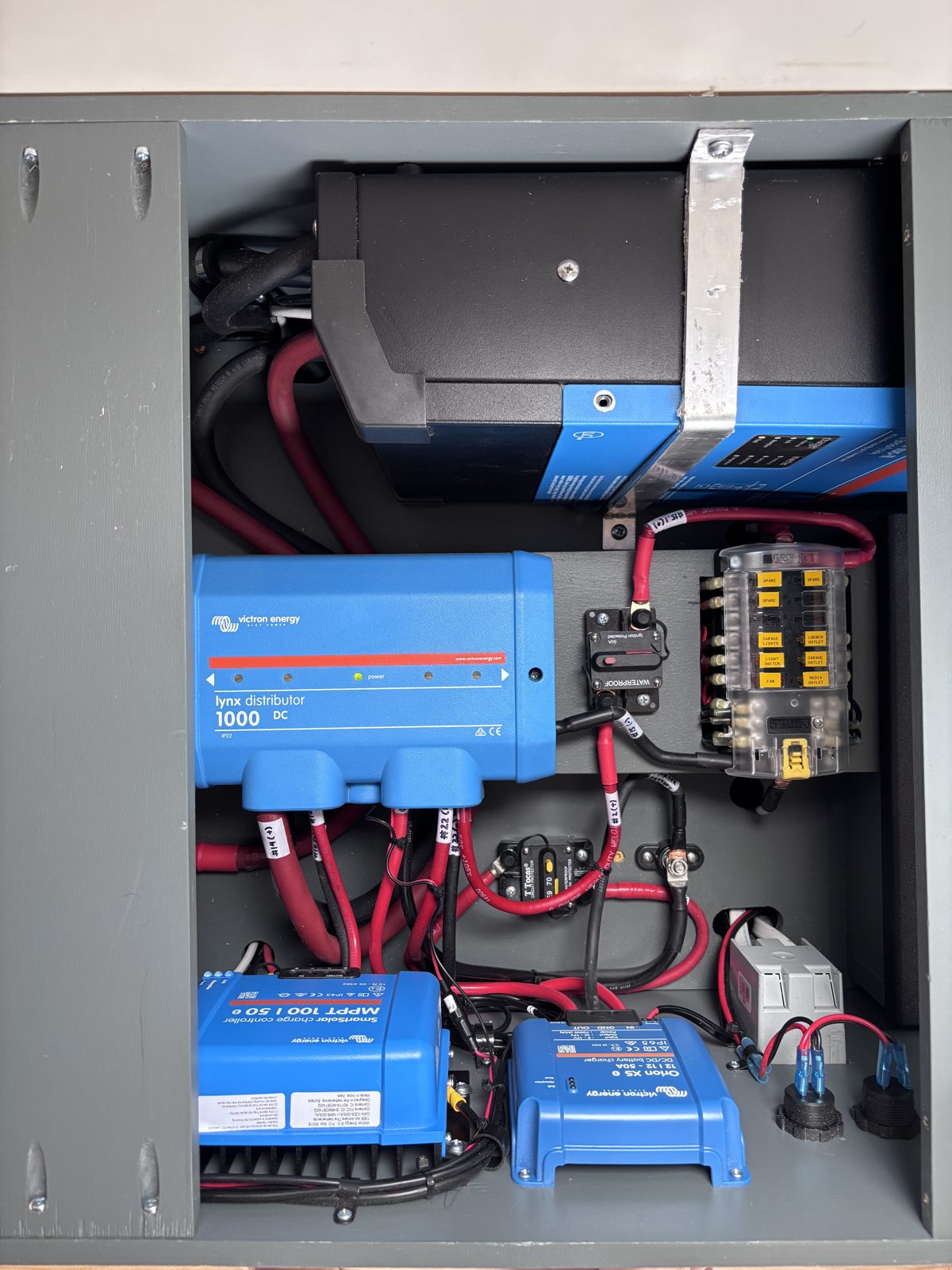

Charge bay: MultiPlus, Lynx Distributor, fuse block, MPPT, and Orion XS.

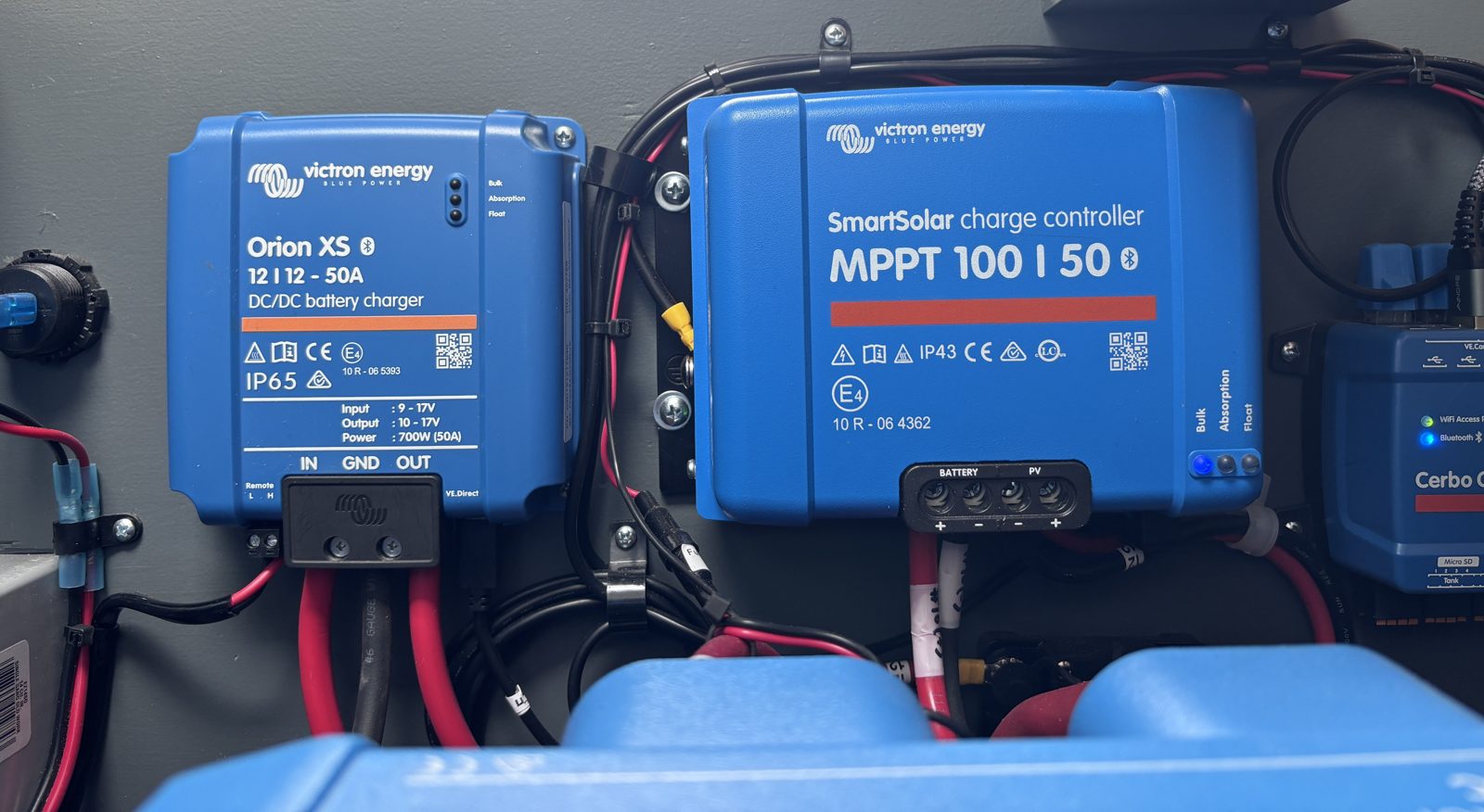

Charge wall straight on: Orion XS, SmartSolar MPPT 100/50, Cerbo GX.

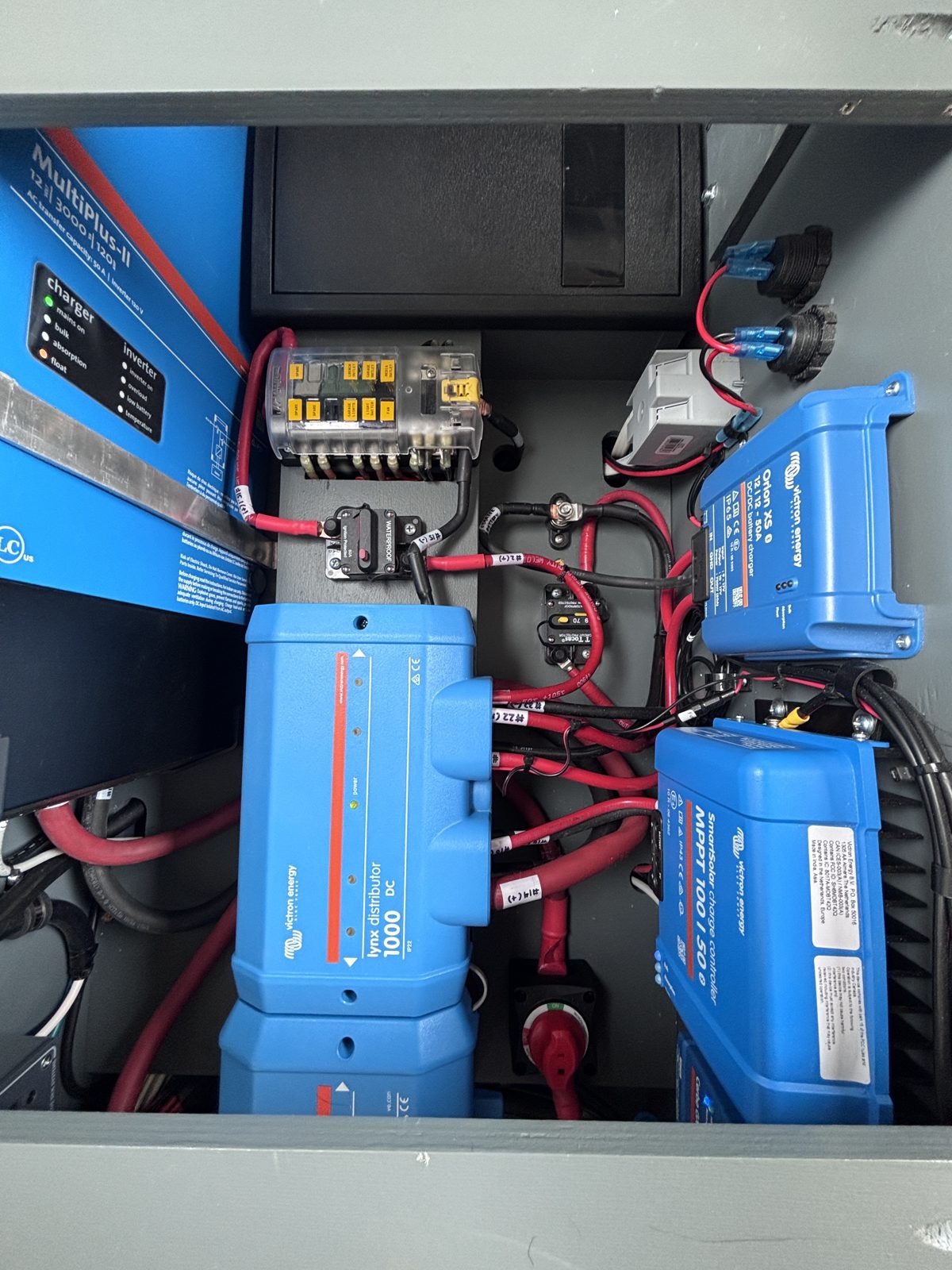

Charge bay from above with the DC fuse block and breakers.

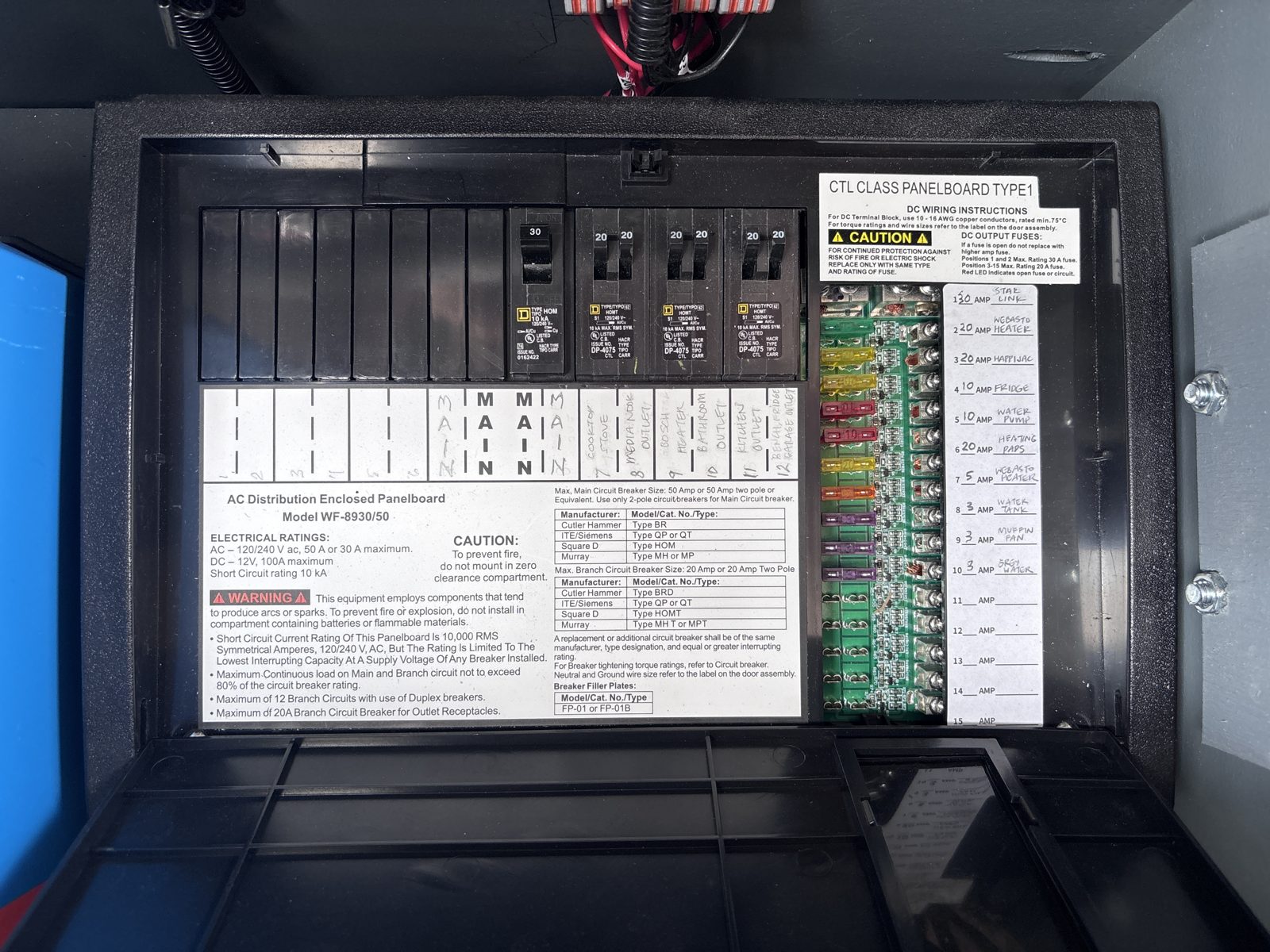

AC distribution panelboard with hand-labeled branch circuits and DC fuses.

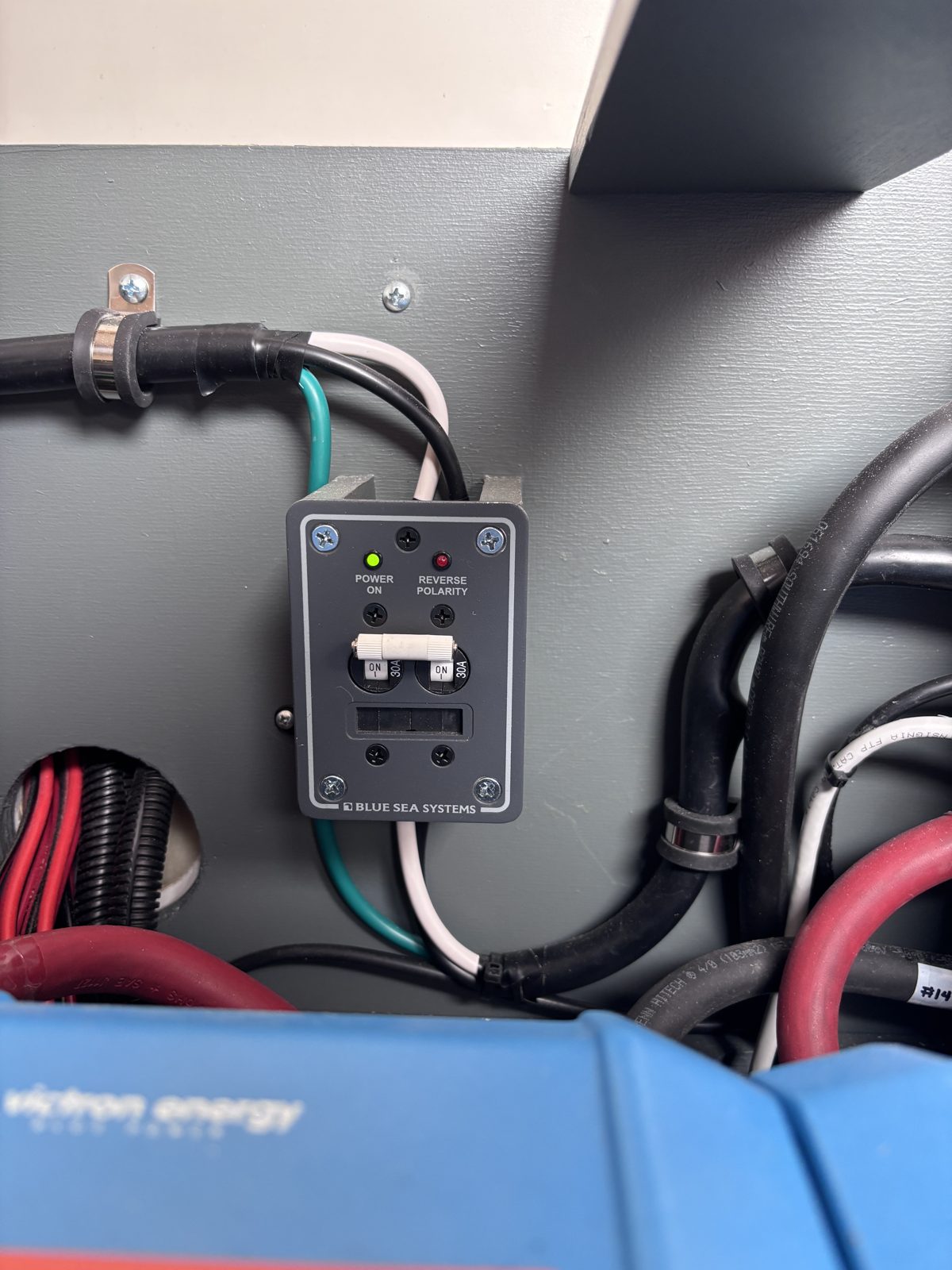

Blue Sea shore power breaker and reverse-polarity indicator.

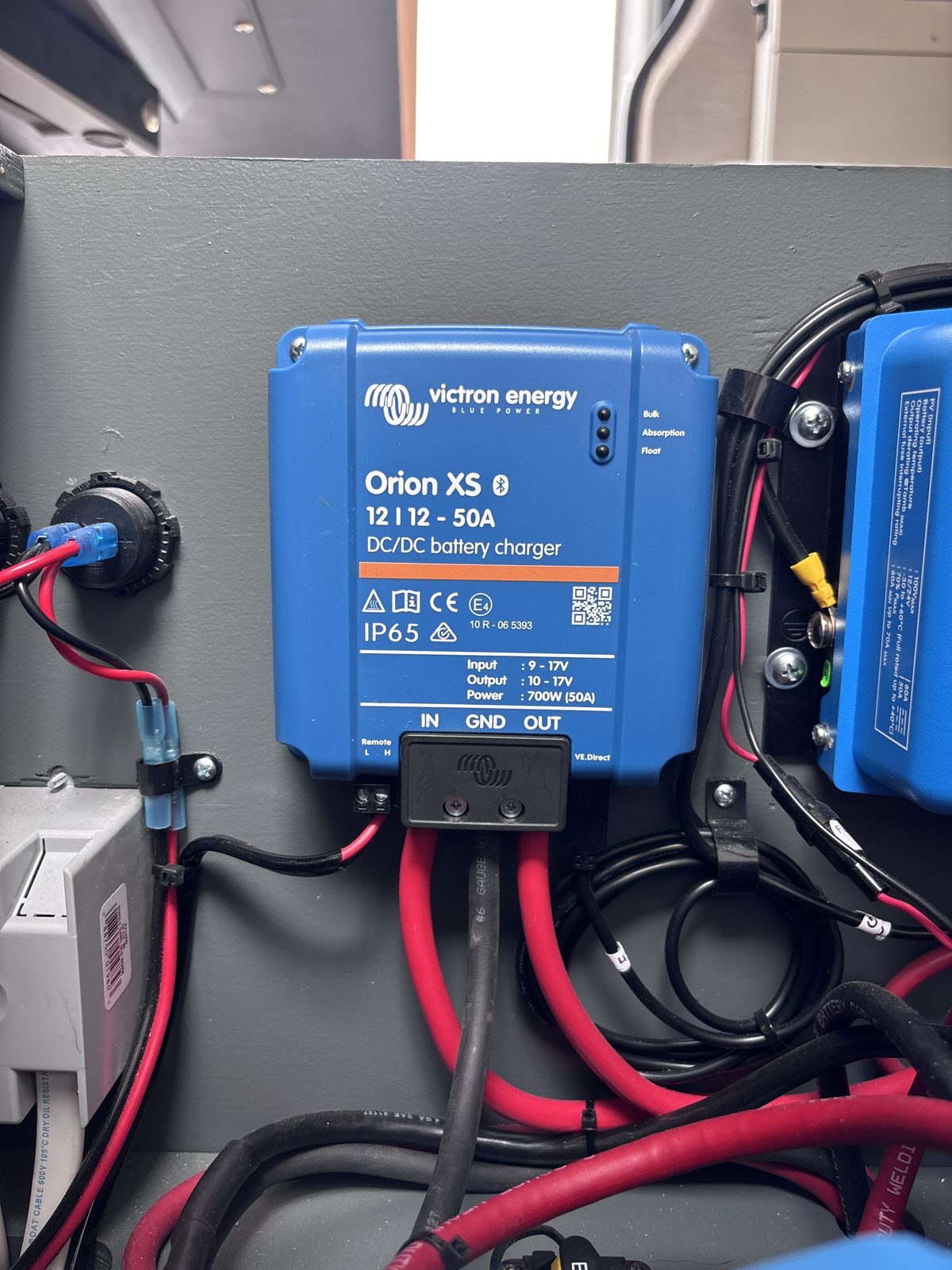

Orion XS 12/12-50A DC-DC battery charger detail.

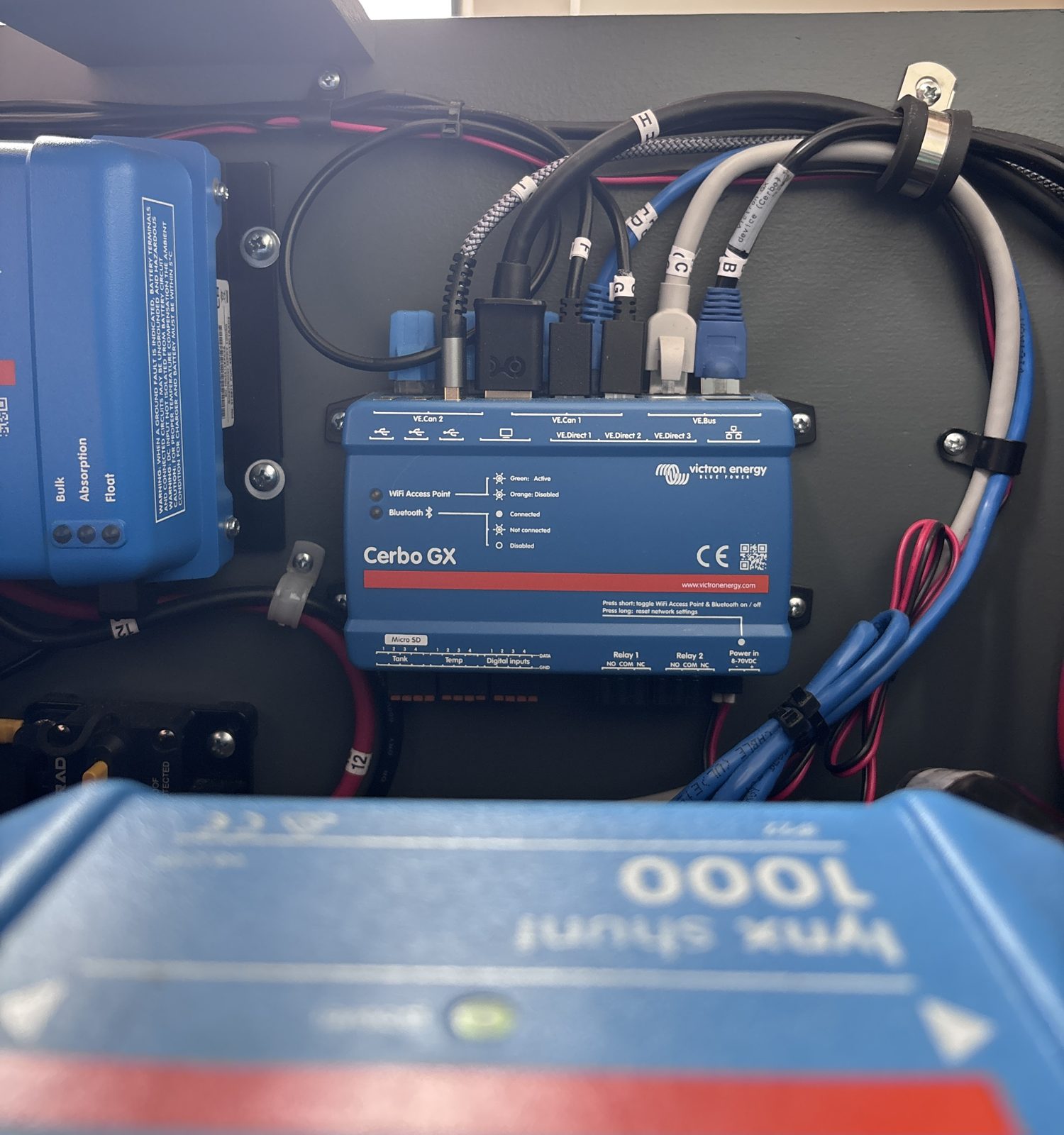

Cerbo GX with labeled VE.Direct, VE.Can, and VE.Bus cabling.
